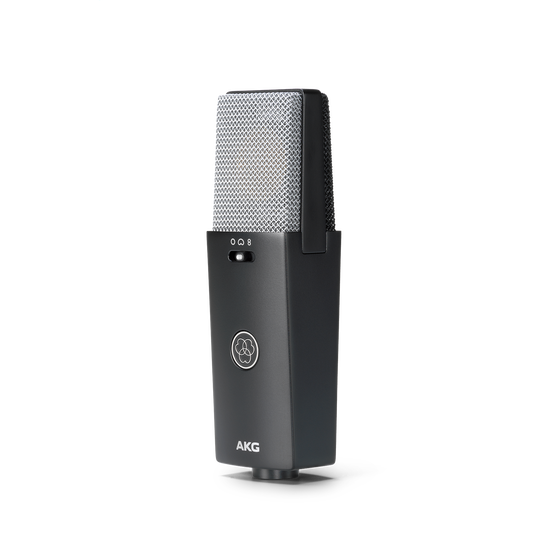

Large Diaphragm Multi-Pattern Condenser Microphone

Large Diaphragm Multi-Pattern Condenser Microphone

Discover a new chapter in audio brilliance with the AKG C114 Large Diaphragm Multi-Pattern Condenser Microphone—designed to transform professional sound capture for today’s creative innovators. Built on decades of AKG acoustic innovation, the C114 picks up every nuance with precision clarity—whether it's expressive speech, dynamic instruments, or ambient environments.

Crafted for musicians, podcasters, YouTubers, and streamers, its refined design turns solo recordings and interviews into engaging productions. A wide frequency range ensures every niche detail is captured as intended.

The C114 features an edge-terminated capsule, inspired by the same design found in the world-renowned AKG C12 and C414 microphones. The new microphone delivers exceptionally smooth top-end and beautifully balanced midrange.

Integrated cardioid, omnidirectional, and figure of eight polar patterns offer the utmost in capture versatility to excel in every scenario. An optimized, transformerless FET circuit delivers an ultra-low noise floor and expansive dynamic range, providing exceptional performance across all source types.

With a refreshed, modern aesthetic that honors AKG’s iconic heritage, the C114 not only sounds outstanding but also makes a striking visual impression on camera. Its intuitive design ensures effortless operation and seamless integration with today’s recording technologies, fitting perfectly into any creative workflow.

The C114 microphone body is crafted from 100% recycled PIR metals and alloys, and every component—from packaging to accessories—has been thoughtfully engineered to minimize environmental impact.

Whether you’re elevating your current space or building from the ground up, the AKG C114 Large Diaphragm Multi-Pattern Condenser Microphone delivers phenomenal performance and ease of operation, setting a new benchmark for professional-grade audio capture.

Item# AKG-C114

General Specifications

Capsule Type 26mm Dual Diaphragm, true condenser pressure gradient
Polar Pattern Cardioid, Omnidirectional, Figure of Eight
Sensitivity (cardioid) 13.5mV/Pa (-37.4 dBV)
Frequency Response 20Hz – 20kHz
Electrical Impedance ≤200 ohms
Recommended load impedance ≥1000 ohms
Self-Noise Level 12dB(A) SPL
Signal to Noise 82dB re 1 Pa
Max SPL for 0.5% THD 145dB SPL
Temperature Range -5 to 50 °C (23 to 122 °F)
Phantom Powering 48V +/-4V to IEC 61938
Current Consumption ≤5 mA
Connector 3-pin XLR (pin 2 hot)

Dimensions

Length 158mm
Width 47mm
Height 35mm
Net weight 415g

Application

Project Studio Yes
Live Instrument Yes
Podcasting and Video Blogging Yes
Web Streaming, Web Conferencing, and Gaming Yes
Broadcasting Yes

Instrument

Vocals Yes
Piano / Strings Yes
Horns / Woodwinds Yes
Drums / Percussion Yes
Guitar Amps / Bass Amps Yes
Click here for a complete list of all specs for this product

Spec Sheet (English)

English 583 KB
  • 1 x C114 Multi-pattern Condenser Microphone
  • 1 x H84 Shock mount
Product Box
