AKG

P170

Details
Variations

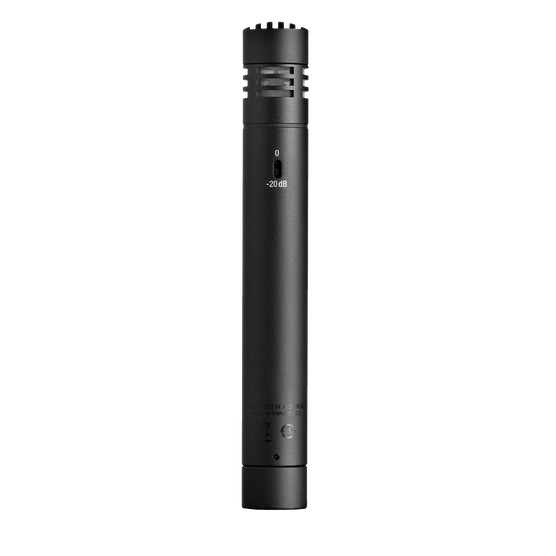

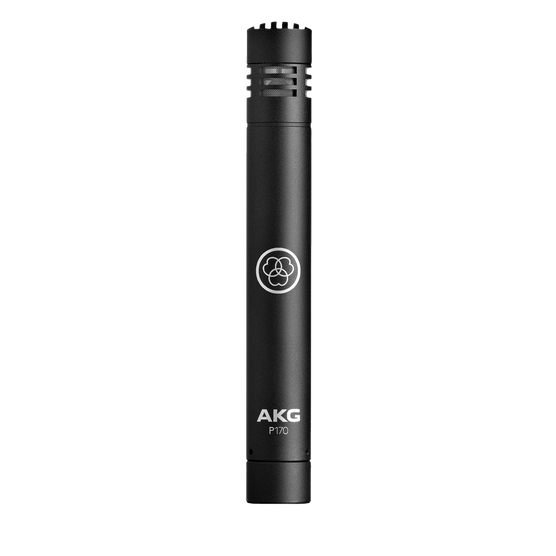

High-performance instrument microphone

At the point

The P170 is a small-diaphragm condenser microphone for recording of overheads, percussion, acoustic guitars and other strings. Its lightweight 1/2-inch true condenser transducer diaphragm delivers outstanding clarity and transient response. The P170 utilizes the experience of sound engineers from around the world and is considered an affordable alternative to the legendary AKG C451 B.

Item# 3101H00410

General Specifications

Audio frequency bandwidth 20 - 20000 Hz
Equivalent noise level 19 dB-A
Sensitivity 15 mV/Pa
Signal to Noise 75 dB-A
Preattenuation Pad -20 dB
Electrical impedance <= 200 Ohms
Recommended load impedance >= 1000 Ohms
Polar Pattern Cardioid

Dimensions

Length 160 mm
Diameter 22 mm
Net Weight 130 g

Audio Output

Type Balanced XLR
Gender Male
Contacts 3-pin

Powering Interface

Voltage 44 to 52 V
Current <= 3 mA

Application

Project Studio Yes
Live Instrument Yes

Instrument

Drums / Percussion Yes
Horns / Woodwinds Yes
Piano / Strings Yes
  • 1 x P170 Microphone
  • 1 x Stand Adapter
